Products

Your network is faster anytime, anywhere, from any device.

WarpGateway™ — TCP Optimization Proxy Appliance

WarpGateway™ from Badu Networks is designed to optimize your existing wireless networks without costly network equipment or end user device upgrades. It is a transparent optimization proxy that sits between an Internet modem and local Wi-Fi network (see diagram below), available in a compact form factor that offers a simple plug-and-play installation.

Product Brief

WarpGateway™ is scalable and offered in three different models to match your networking needs:

  • WG-100          100Mbps throughput
  • WG-100V        100Mbps throughput and VLAN support
  • WG-100VB      100Mbps throughput, VLAN support, Failover/Bypass


Powered by Badu Networks’ core technology WarpTCP™, WarpGateway™ improves download and uploads by up to 100% depending on network conditions. Performance for WarpGateway™ depends on network variables like round trip time (RTT), packet loss %, available bandwidth, size of content, and other factors.

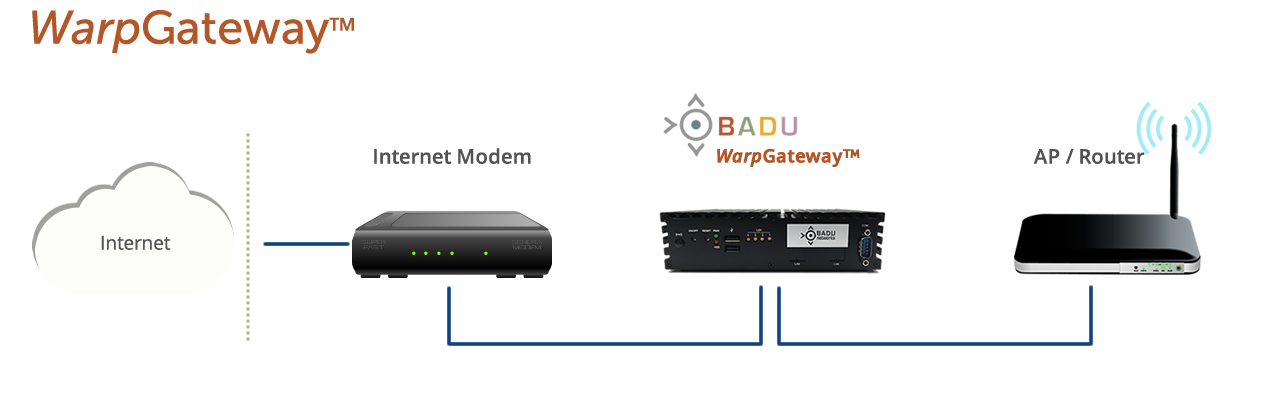

WarpGateway Deployment Diagram

WarpTCP™ — Smarter Congestion Control

TCP was invented 35+ years ago with guaranteed delivery of data in mind, it was never designed for use in massive cloud infrastructures or today’s overly crowded wireless networks. Given the jittery nature of today’s highly-shared wireless networks, TCP often overreacts to congestion and other network variations which results in a drastic drop in data throughput. This overreacting causes a reduction in utilized available bandwidth, which results in a generally poor user experience.

WarpTCP™ is a set of intelligent algorithms that maximize TCP throughput in the face of network variations such as delay, jitter, packet loss and random bandwidth fluctuation. It was especially designed to maintain high TCP throughput in wireless networks such as LTE and Wi-Fi. Compared to competing TCP acceleration solutions, WarpTCP™ does not overreact to temporary or false-alarm congestion, minimizes re-transmissions, and recovers faster from a congestion event.

Features

WarpGateway™ offers the following features:

  • TCP Optimization Proxy Appliance
  • Up to 100Mbps throughput
  • Improves downloads and uploads by 20% – 100%
  • Plug and play installation using WarpAdmin™ management tool
  • Scalable product family to serve SoHo, SMB, or Large Enterprises
  • VLAN support (WG-100Vx)
  • Failover Bypass Support (WG-100VB)

Benchmarks

The WarpGateway™ benchmarks were measured across a variety of network conditions to quantify the benefit of WarpTCP™ technology for enterprise Wi-Fi networks.

Traffic passing through WarpGateway™ appliance showed up to 100% faster download and upload times compared to standard TCP, regardless of file size or network conditions.

For a complete benchmark report, please contact your Badu sales representative.



Where To Buy

WarpGateway™ is available from the following resellers:

Free Trial

Discover the benefits that WarpGateway™ delivers by asking for a free 30-day trial. Click the “Free Trial” button below. It is risk free and easy to test.

Technical Specifications

FeatureWarpGateway™
ProcessorIntel® Celeron J1900 SoC Quad-core 2.0 Ghz processor
Memory4GB DDR3L-1333 onboard, non-expandable
Expansion Slots2 Full-size Mini-PCIE slots
Storage
  • 2.5″ SATA2 Drive bay (max 9.5mm height)
  • Full size mSATA/Mini-PCIE shared slot
Network4 Intel i211-AT gigabit LAN
Other FeaturesACPI S2, HCI, Watchdog Timer 10-255 min/sec
Rear Panel I/O
  • USB 3.0 port
  • USB 2.0 port
  • VGA port
  • 4 – RJ45
Front Panel I/O
  • Power button
  • Reset button
  • Power & HDD LED
  • LAN LEDs
  • 2 – USB 2.0 ports
  • Serial Port
BIOSAMI 64mb SMT Flash ROM
Box Contents60W 12V AC Adapter, US Power Cord, Manual, Driver disk, Wall/Din rail mount kit
ComplianceCE, FCC, RoHS, ErP Ready
TemperatureOperating Temperature 0 to 40C, Storage Temperature -20 to 85C
Dimensions185 x 142 x 48mm (DxWxH)



Product Ordering Information

WarpGateway™ – Ordering Part Numbers:

WG-100100Mbps throughput
WG-100V100Mbps throughput and VLAN support
WG-100VB100Mbps throughput, VLAN support, Failover/Bypass
